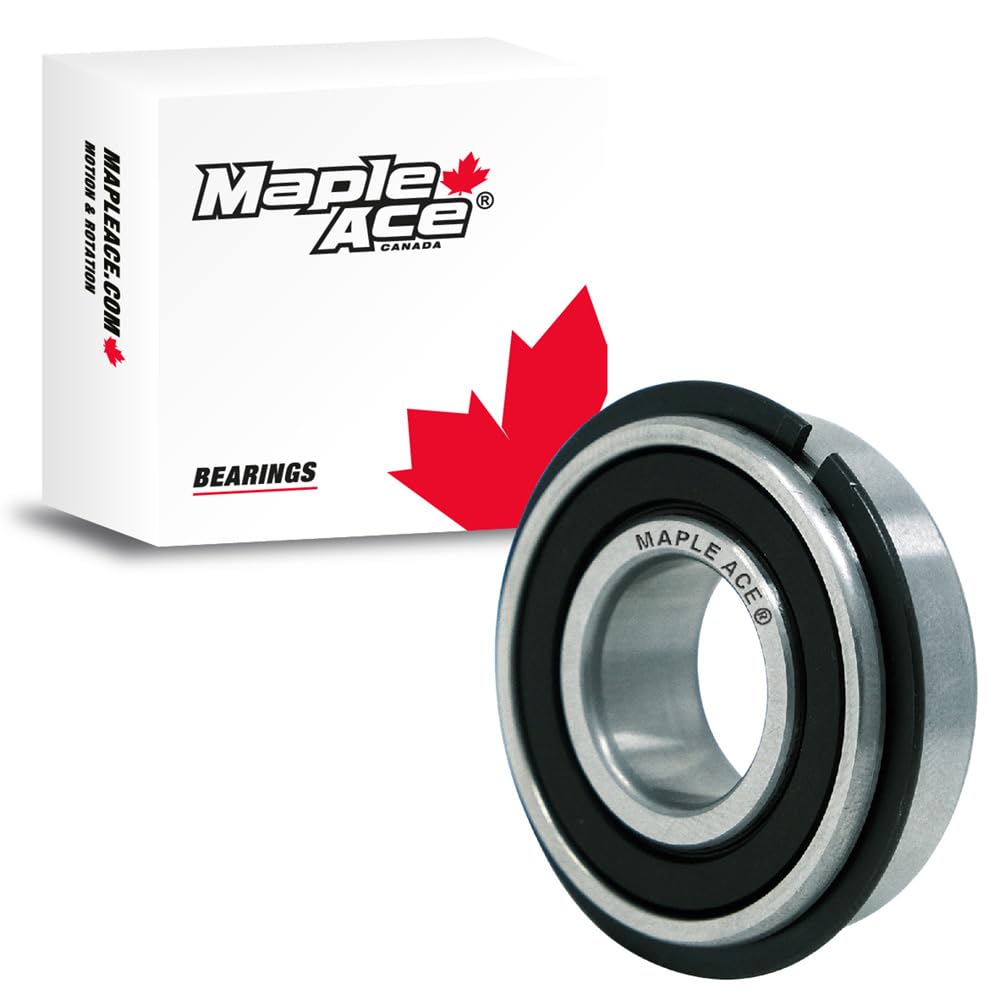

MAPLE ACE 6305-2RSNR Ball Bearing w/Snap Ring 25x62x17mm 6305 2RSNR Rubber Sealed (Qty 1)

The single-row deep groove ball bearing with a snap ring groove and seals or shields on one or both sides offers a versatile design, suitable for a wide range of applications. It features low friction, optimized for minimal noise and vibration, allowing for high rotational speeds. This bearing accommodates both radial and axial loads in both directions, making it reliable and easy to mount while requiring less maintenance than many other bearing types. The snap ring, fitted in an annular groove in the outer ring, enables precise axial location within housings. Its integral sealing system extends bearing service life by retaining lubricant and protecting against contaminants entering the bearing, ensuring long-lasting performance. - Specification: Item 6305-2RSNR, Bearing Type Deep groove ball bearing, Bore Diameter 25.00mm, Outside Diameter 62.00mm, Width 17.00mm, Dynamic Load Rating Cr 23400N, Static Load Rating Cor 11600N, Limiting Speed 7500 r/min, Locating feature Snap ring (fitted), Clearance CN, Tolerance Classes P5, Cage Metal, Closures Seal on both sides, Lubrication Type Grease Chevron, Lubrication Temperature -30°C to +180°C, Rolling Element Indicator Ball, Material Gcr15, Product Weight 0.240 KG.

• 6305 2RSNR Deep Groove Ball Bearing dimensions: Bore Diameter 25mm, Outside Diameter 62mm, Width 17mm. It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High, and Low-temperature settings.
• Interchange to 6305 N, 6305 NR, 6305 RSNR, 6305 ZNR, 6305 RSRNR, 6305 2RSRNR, 6305 RS1NR, 6305 2RS1NR, 6305 LUNR, 6305 LLUNR, 6305 DUNR, 6305 DDUNR, 6305 2NSLNR, 6305 2NSENR, 6305 EENR
• This deep groove ball bearing has a snap ring located in a groove on the outer ring and a rubber seal on both sides, which is connected to the inner ring to protect the bearing from dust or any possible contamination. If your application requires a ball bearing with one seal or one opened without seals, you can easily remove one or both seals.
• Application: ATVs, Motorcycles, Snowmobiles, Snowblowers, Snow Thrower, Lawn Mowers, Go-KART, Automotive, Appliances, Sporting Machines, Agriculture Machines, Industrial Applications, Electric Motors, HVAC, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Medical Devices...etc
• Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.
